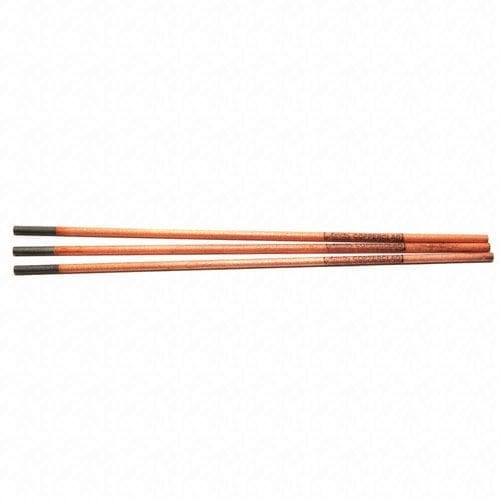

Weldmark Arcair Pointed Copperclad DC Carbon Arc Gouging Electrode 5/32″ X 12″ 50per box

Weldmark Brand, Model # WM22-043-003, Arcair DC Pointed Copperclad arc gouging electrode features a blend of carbon and graphite and offers good metal removal rates.

Great for any Light-Duty Maintenance, Farming, and Repair Shops.

Applications:

▪  Creating u-grooves in the weld

▪  Removing old welds

▪  Gouging out cracks

▪  Cleaning and repairing castings, and more

Specifications:

• Diameter: 1/4″
• Length: 12″
• Package Size: 50 Electrodes per Box

Arcair Professional Angle-Arc^® K4000 is part of the manual gouging torch & cable assemblies offered by the industry leader in the air carbon-arc products. It’s the most copied manual gouging torch & cable in the world. K4000 Angle-Arc Manual Gouging Torch comes with 7′ 360-degree swivel cable and insulated hook-up kit. Torch accommodates 5/32″ – 1/2″ round and 5/8″ flat electrode. Air requirement is 80 psi and flow rate of 25 cfm

Applications:

Include heavy metal removal such as weld preparations in:

▪  Industrial & General Fabrication

▪  Structural Steel Fabrication

▪  Large Component

▪  Large Fabricated Objects

▪  Marine & Offshore Structures

▪  Pressure Vessels

▪  Hard Facing

Features:

▪  IMPROVED TORCH AIR FLOW – More efficient use of air supply. Improved metal removal.

▪  FOUR HOLE HEAD ASSEMBLY – Optimizes air flow to the arc. Efficiently cleans slag from groove edge.

▪  AIR ASSIST POSITIVE AIR SHUT-OFF – Minimizes air supply unit cycling on and off. Allows torch usage when air supply is marginal.

▪  IMPROVED CABLE ELECTRICAL CONDUCTION – Improves cable service life. Decreases heat build up in cable and torch.

▪  SUPERIOR OUTER CABLE COVER – Durable cover for improved cable life in a harsh environment. Resists breakdown due to exposure to heat produced by gouging.

▪  INSULATED CONNECTION BOOT & HOOK-UP KIT – Makes for easy torch hook-up. Virtually eliminates the possibility of arcing when contacting electrically hot parts.
