The Miller Multimatic™ 220 AC/DC is a true multi-process welder that is capable of AC (aluminum) TIG welding. The Multimatic 220 AC/DC produces up to 230 amps of MIG welding output and up to 210 amps of TIG welding output. The complete portable MIG, Stick and AC/DC TIG welding package comes with Miller® MDX™-100 MIG welding gun, Weldcraft™ 150 amp TIG torch with accessories, remote foot control, two argon flow regulators with hoses, stick electrode holder and ground clamp.

The Multimatic™ 220 AC/DC comes standard with a color LCD screen and features Miller’s Auto-Set™ Elite. Auto-Set™ Elite sets MIG, Stick and TIG welding parameters automatically, all you need to do is enter metal thickness and welding wire or tungsten electrode diameter. It also allows you to fine tune weld settings manually to suit your individual preferences. The 220 AC/DC runs on either 120 volt or 240 volt input power, using Miller’s exclusive multi-voltage plug (MVP™) and weighs only 56 pounds.

Comes complete with:

• Power source
• 10 ft. (3 m) MDX™-100 MIG gun
• 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
• 5 ft. (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
• 5 ft. (2 m) power cord with MVP™ plugs for 120 V and 240 V
• RFCS-14 HD foot control with 20 ft. (6 m) cord Two flow gauge regulators and gas hoses for argon or AR/CO2 mix
• Hobart® spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. 8/0.9 mm) flux-cored wire
• AK2C TIG torch accessory kit
• Material thickness gauge
• Hook-and-loop cord wraps

Featured

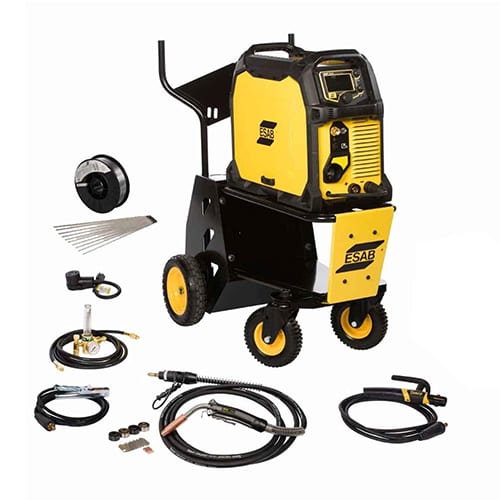

• Power to Perform – with 285A @ 40% (1ph model) and 285A @ 50% (3ph model) you’ll have the confidence to run the full range of .045 in. (1.2 mm) wire, short arc and spray transfer, with increased deposition rates and higher productivity on smaller diameter wires such as .030 in. (0.8 mm) and .035 in. (0.9 mm).
• sMIG Technology – innovative “smart-MIG” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld.
• ESAB’s new 4 Roll Drive System weld up to .052 in. (1.4 mm) solid wire and up to 1/16 in.(1.6 mm) cored wire. Plus, electrodes up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm).
• Unmatched Portability/Mobility – weighing in at 70 lbs. (32 kg) with multi-voltage, multi-phase capability and 4 handle roll cage. Detach the Rebel EMP 285ic from its cart and tackle any job around the shop or out at the job site.
• TFT Multilingual Display – packed full of features, Rebel EMP 285ic has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting giving you the ability to fine tune your welds for the most optimal performance.

Industries

• Agricultural Equipment
• Industrial and General Fabrication
• Repair and Maintenance
• Civil Construction
• Training Schools
• Industrial Production & Manufacturing

Welding Process

• SMAW/MMA (Stick)
• GMAW (MIG/MAG)
• FCAW (Flux Core)
• GTAW-DC (TIG DC)
